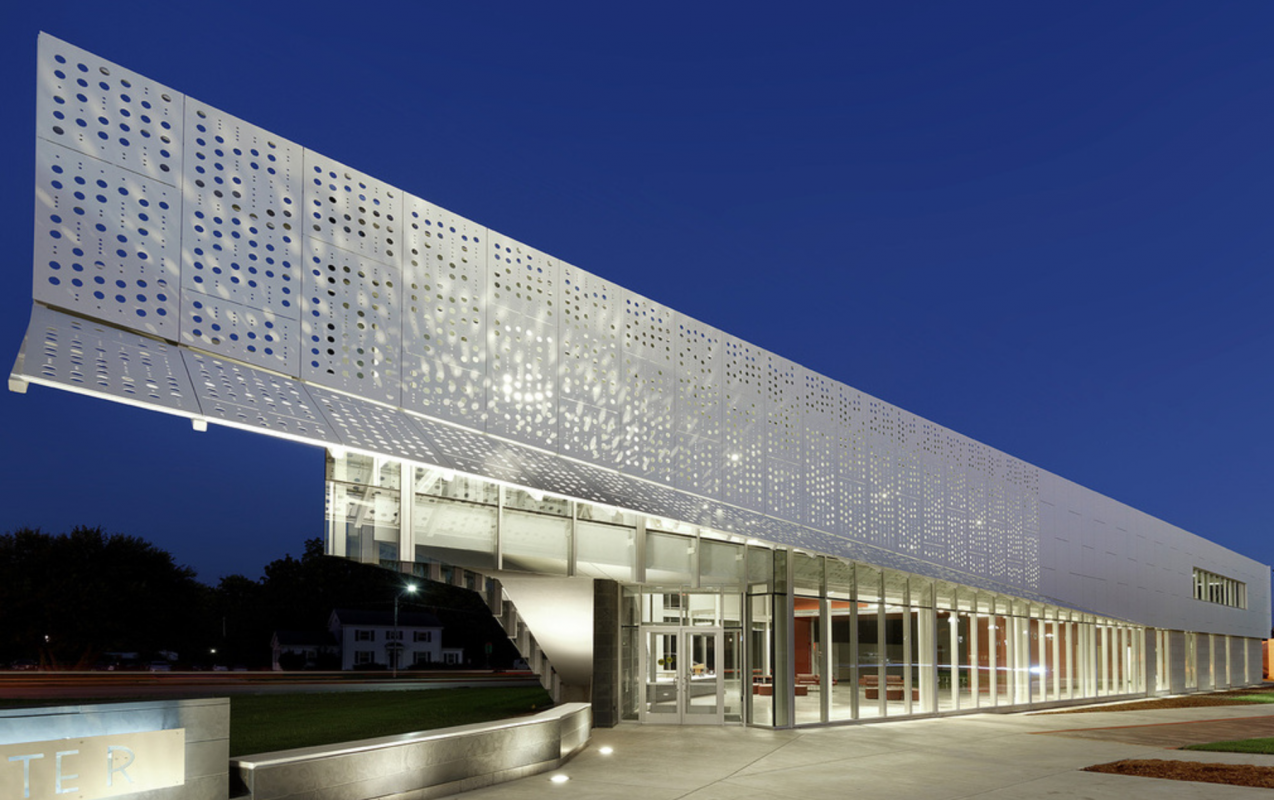

Swisspearl MSU Davis Perforated Panels Banner

Fiber Cement Rainscreens

Swisspearl Cladding Corp Fiber Cement Rainscreens

Two great companies – Swisspearl® and Cladding Corp – have joined forces to serve as the premium fiber cement rainscreen solution in North America. Architects, installers, and owners now have the premier fiber cement panel from Swisspearl, combined with a fully engineered rainscreen system by Cladding Corp. And, as of 2023, Cembrit has rebranded as Swisspearl®, offering an expansion of the Patina product portfolio as the Authentic Range, now available in North America.

In line with Cladding Corp's vision for elemental materials from the "ground-up," Swisspearl is proudly made up of natural raw materials from the Swiss mountains: cement, pulverized limestone, water, and air.  In addition, less energy is consumed during the manufacture of Swisspearl panels, as compared to many other leading building materials. Swisspearl facades can be easily installed to retrofit or reclad existing structures as well as be effortlessly removed when it is time for a new design direction. And with a lifespan of over 40 years, Swisspearl improves both the ecological and economic outcomes of every building envelope.

Not all fiber cement panels are created equally. Swisspearl® offers a large portfolio of products that are air-cured, a process where cement-based products cure naturally, with a 28-day curing process, that uses saves energy and reduces internal panel stress. An air-cured fiber cement product is always superior to an autoclaved product, as the panels are dried naturally over time, allowing for natural chemical bonding of the fibers and taking out the added heat energy and internal panel stress.

Cladding Corp's engineered systems give architects and installers the needed resources to design intelligent rainscreen walls that address deep cavity systems, continuous insulation (c.i.) and other code and industry standards. Our systems for fiber cement cladding, in partnership with ECO Cladding, are also designed to give architects aesthetic freedom to incorporate concealed, lap-siding, or visible attachments. There are many companies promoting fiber cement panels, but only Cladding Corp has the premier fiber cement panel plus an engineered assembly solution that guarantees optimal performance and aesthetics.

Download the 2023 Swisspearl Design Solutions Overview Brochure

Download the 2023 Swisspearl Delivery Program - Finishes and Formats Brochure

Download the Swisspearl Fiber Cement Rainscren Spec

Products

Formats

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Largo Panel Size 1/2“ Thick

Largo 12mm

120 1/16“ × 49 3/16“      1/2“

98 13/16“ × 49 3/16“      1/2“

Cladding Corp Largo Panel Size 79 1/8" × 49 3/16"     5/16"

Largo 8mmS

79 1/8" × 49 3/16"     5/16"

Cladding Corp Largo Panel Size 120 1/16"× 36 5/8" and 98 13/16" × 36 5/8"  5/16"

Largo 8mmT

120 1/16"× 36 5/8"     5/16"

98 13/16" × 36 5/8"     5/16"

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Clinar Clip Thumbnail

Clinar Clip

47 1/4” x 14 11/64”    15/64"

47 1/4” x 18 7/16”     15/64"

47 1/4” x 23 5/8”      15/64"

Clinar 4

35 7/16“  x 11 13/16“   1/8"

Cladding Corp Clinar 6 Thumbnail

Clinar 6

47 1/4” x 5 29/32”   15/64”

47 1/4” x 7 7/8“       15/64”

47 1/4” x 9 29/64“   15/64”
