Swisspearl TERRA Series

Swisspearl TERRA

TERRA... reminiscent of earth tones, for a warm, earthy look.

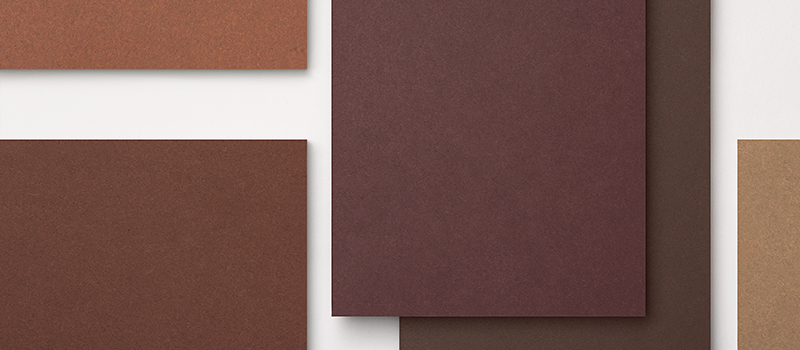

TERRA, the newest large-size fiber cement panel from Swisspearl is reminiscent of the earth tones found in nature.  TERRA is a grey-based fiber cement panel with a translucent, strongly pigmented coating. The finely coordinated colors are reminiscent of earth tones. TERRA gives the building facade an earthy, warm look. With TERRA, buildings are able to merge with their natural environment.

While TERRA's earth tones blend seamlessly into their environment, at the same time they also make an impact because of their timeless nature.  TERRA is just one of the many innovative and sustainable product lines made of natural raw materials born of the ingenuity and expertise of Swisspearl.

TERRA panels are air-cured and not autoclaved (unlike competing panel products). Advantages of this approach include:

  • The 28-day curing process allows panels and fibers to cure naturally, without excess energy or heat applied
  • High-quality raw materials provide a better finish when air-cured over time
  • Longer lasting durability with increased 'creep' capacity - reduces tensile stresses from panel expansion/contraction
  • Natural process, no additional heat applied
  • Low moisture movement within panels, reducing internal panel stress
  • Better resistance to environmental/chemical agents based on air-cured process

Download the Swisspearl TERRA Color Overview

Swisspearl TERRA Series

Product Sizes

Product Sizes

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Largo Panel Size 1/2“ Thick

Largo 12mm

120 1/16“ × 49 3/16“      1/2“

98 13/16“ × 49 3/16“      1/2“

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

TERRA Amber 751

Amber 751

TERRA Amber 752

Amber 752

TERRA Amber 753

Amber 753

TERRA Amber 754

Amber 754

TERRA Amber 755

Amber 755

TERRA Amber 756

Amber 756

Eco Cladding Attachment Systems

ALPHA HCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement, HPL or fiber concrete panels. Rivet attachment guarantees high pull-out values and ease of installation.

Alpha Vci.10 Rainscreen Aluminum Sub-framing System

ALPHA VCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.40 Rainscreen Aluminum Sub-framing System

ALPHA VCI.40 SYSTEM

Panel Subframing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
