Clay Series

Striking effects... Resin-inspired, concrete-reminiscent.

The Clay Series Clay features the coated effect typical of resin, with a slightly shiny effect on a matt surface, perfect for facades.  With its palette of dense colors, both warm and cool, Clay is a perfect complement to other Ceramic5 color series and also with other cladding panel products.

Its high-performance, porcelain-grade ceramic characteristics make it an affordable and reliable alternative to low-quality fiber cement board cladding or porous concrete board panels.

When combined with a fully engineered, thermally modeled substructure system from ECO Cladding, the Clay Series offers a maintenance-free, graffiti-resistant rainscreen alternative to fiber cement and fiber concrete panels at a budget-conscious price point.

The Clay Series can be installed in running or stacked bond and in vertical or horizontal layouts, depending upon the design.  Concealed or exposed color-matched clips are the most common, but lap-siding approaches are also available.

Download the 'Clay Series' Color Chart and Spec:

Ceramic5 Clay Color Overview

Ceramic5 Ceramic Rainscreen Spec

Ceramic5 Clay Series Porcelain Stone Rainscreen Panels

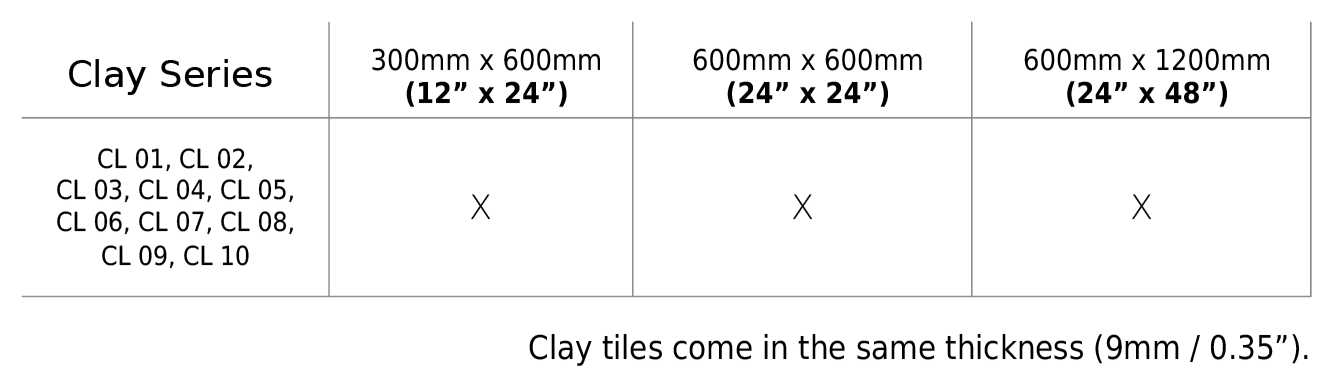

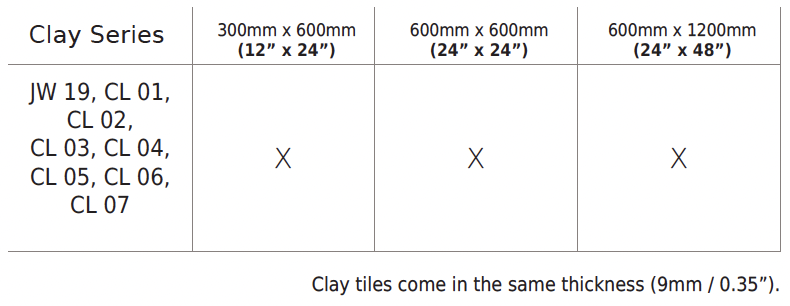

Product Sizes

Ceramic5 Clay Series Sizes

Color Palette

Ceramic5 Clay Series Extra White JW 19

Extra White JW 19

Ceramic5 Clay Series Calm CL 01

Calm CL 01

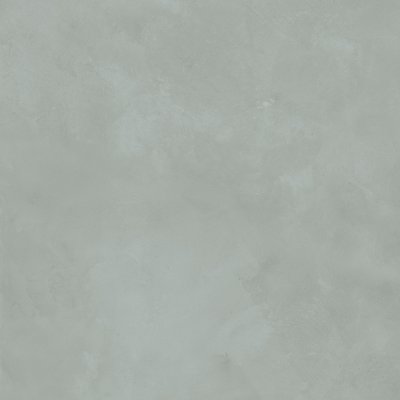

Ceramic5 Clay Series Delight CL 02

Delight CL 02

Ceramic5 Clay Series Awake CL 03

Awake CL 03

Ceramic5 Clay Series Fancy CL 04

Fancy CL 04

Ceramic5 Clay Series Verve CL 05

Verve CL 05

Ceramic5 Clay Series Shy CL 06

Shy CL 06

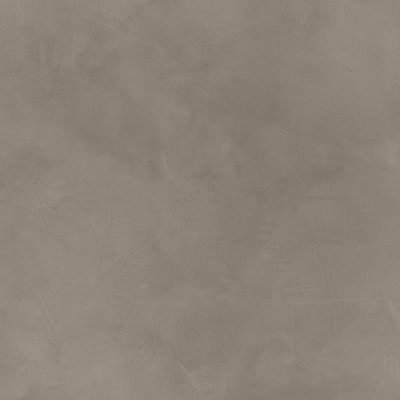

Ceramic5 Clay Series Trust CL 07

Trust CL 07

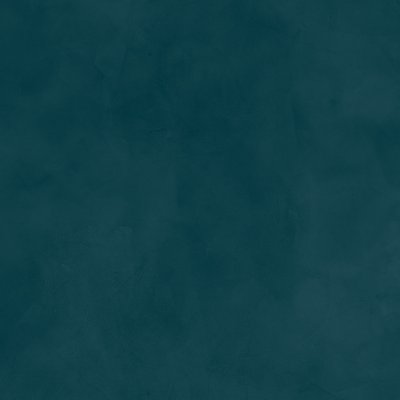

Ceramic5 Clay Series Karma CL 08

Karma CL 08

Ceramic5 Clay Series Glee CL 09

Glee CL 09

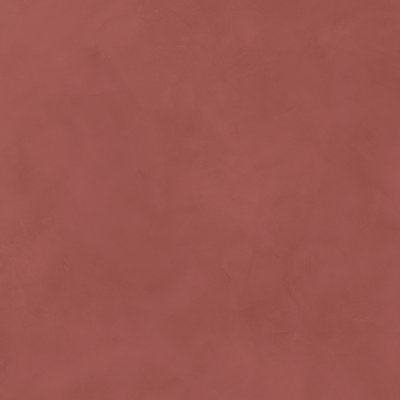

Ceramic5 Clay Series Grace CL 10

Grace CL 10

Project References

The project references highlighted in the below portfolio illustrate the breadth of our rainscreen experience and may not be associated with any of our current material suppliers.

Eco Cladding Attachment Systems

ECO Cladding Alpha HCI.13 System for Visible Clip Attachment of Porcelain Stone Ceramic Rainscreen Cladding Panels

ALPHA HCI.13 SYSTEM

Panel subframing system that offers visible clip attachment used for anchoring ceramic, porcelain stone, or natural stone panels for wall cladding applications. Clips are color-matched to the panels for a discreet, visible-fastened approach. Designed especially for multiple-story construction as a cost-effective and time-saving approach to installation.

Alpha Vci.40 Rainscreen Aluminum Sub-framing System for Ceramic Panels

ALPHA VCI.40 SYSTEM

Panel Sub-framing system that offers fixing using concealed, undercut anchors for ceramic and porcelain stone panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
