Terra5 TC30 – Terracotta Rainscreen Cladding Panels Elevation

TC30 – Terracotta Panels

Timeless Beauty... Impact and Pollution Resistant

TC30 combines the timeless beauty and warmth of extruded terracotta, with the technical performance of high-performance cladding material. The tile’s characteristic fluted inner cavity and lowest classification of water absorption allow it to be both impact and pollution resistant – the perfect facade for high-traffic areas. The TC30 tile's durability is just as convincing as its contemporary aesthetic: these panels are impervious to weather, impact-proof, and require virtually no maintenance.

Advantages include:

  • 100% Natural Material that is maintenance-free
  • Frost, fade, and UV Resistant
  • Sustainable, recyclable, and long-life durability
  • Variety of profile shapes and sizes to meet any budget
  • Engineered, turn-key system assembly that ensures optimal performance

In order to be as adaptable and versatile as possible, the TC30 terracotta rainscreen panels are available in modular heights and lengths – mix and match any height and length to create your facade design. Both durable and timeless, the TC30 terracotta system is a dream for every architect to design with, as well as installation-friendly for the team tasked with the install.

 All of these options are available using the adaptable Alpha Hci.22 concealed clip aluminum attachment system.  TC30 is available in 16 standard colors and custom glazed and textured tiles are available upon request.

Terra5 TC30 Terracotta Rainscreen Spec

Terra5 TC30 – Terracotta Rainscreen Cladding Panels 30mm

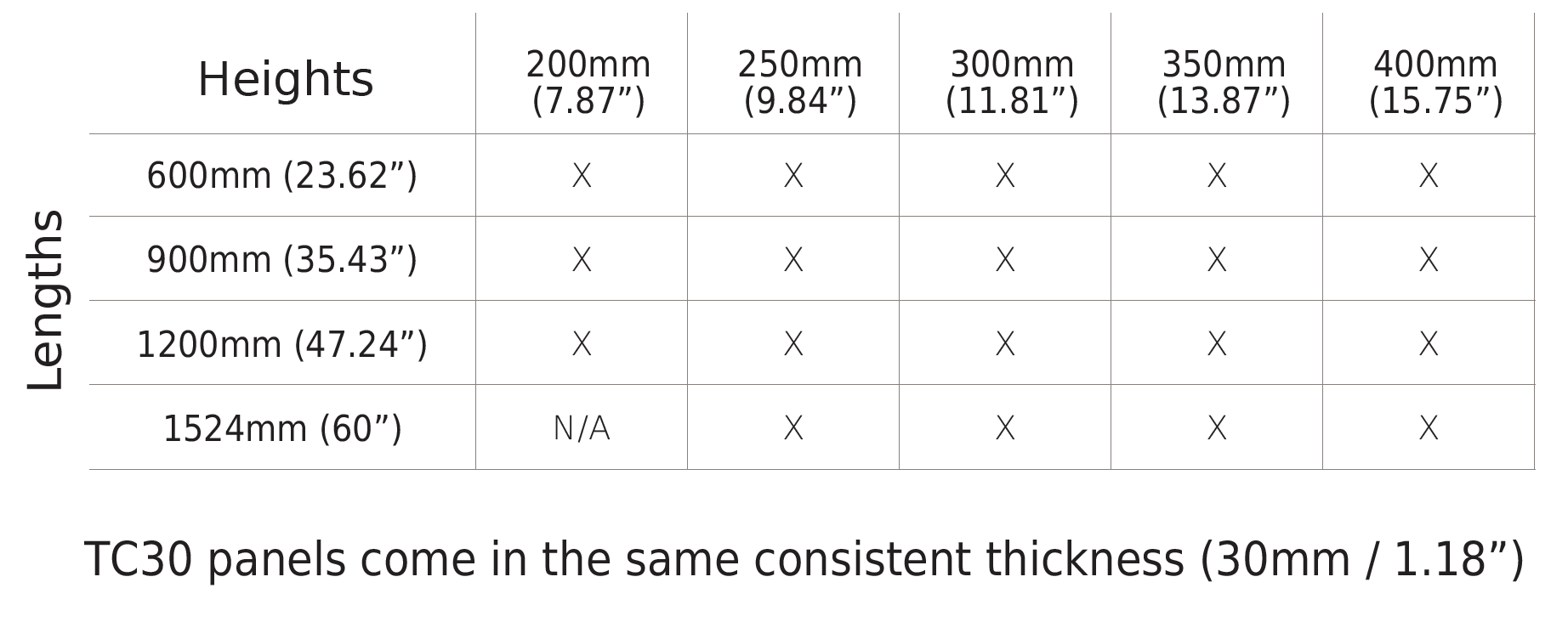

Product Sizes

Terra5 TC30 Terracotta Rainscreen Cladding Tile Size Chart

Color Palette

Terra5 Terracotta Cladding Panel Sunscreen Chocolate

Chocolate

Terra5 Terracotta Cladding Panel Sunscreen Deep Red

Deep Red

Terra5 Terracotta Cladding Panel Sunscreen Earth Red

Earth Red

Terra5 Terracotta Rainsreen Cladding Panel Tuscany

Tuscany

Terra5 Venetian Terracotta

Venetian

Terra5 Terracotta Cladding Panel Sunscreen Pumpkin

Pumpkin

Terra5 Terracotta Cladding Panel Sunscreen Fawn

Fawn

Terra5 Terracotta Cladding Sunscreen Panel Kraft

Kraft

Terra5 Terracotta Cladding Panel Sunscreen Sesame

Sesame

Terra5 Terracotta Cladding Panel Sunscreen Oyster

Oyster

Terra5 Terracotta Cladding Panel Sunscreen Linen

Linen

Terra5 Terracotta Cladding Panel Sunscreen Silk Grey

Silk Grey

Terra5 Terracotta Cladding Panel Sunscreen Pebble Grey

Pebble Grey

Terra5 Terracotta Cladding Panel Sunscreen Ash

Ash

Terra5 Terracotta Cladding Panel Sunscreen Cinder

Cinder

Terra5 Terracotta Cladding Panel Sunscreen Black Pepper

Black Pepper

Download Terra5 Color Overview

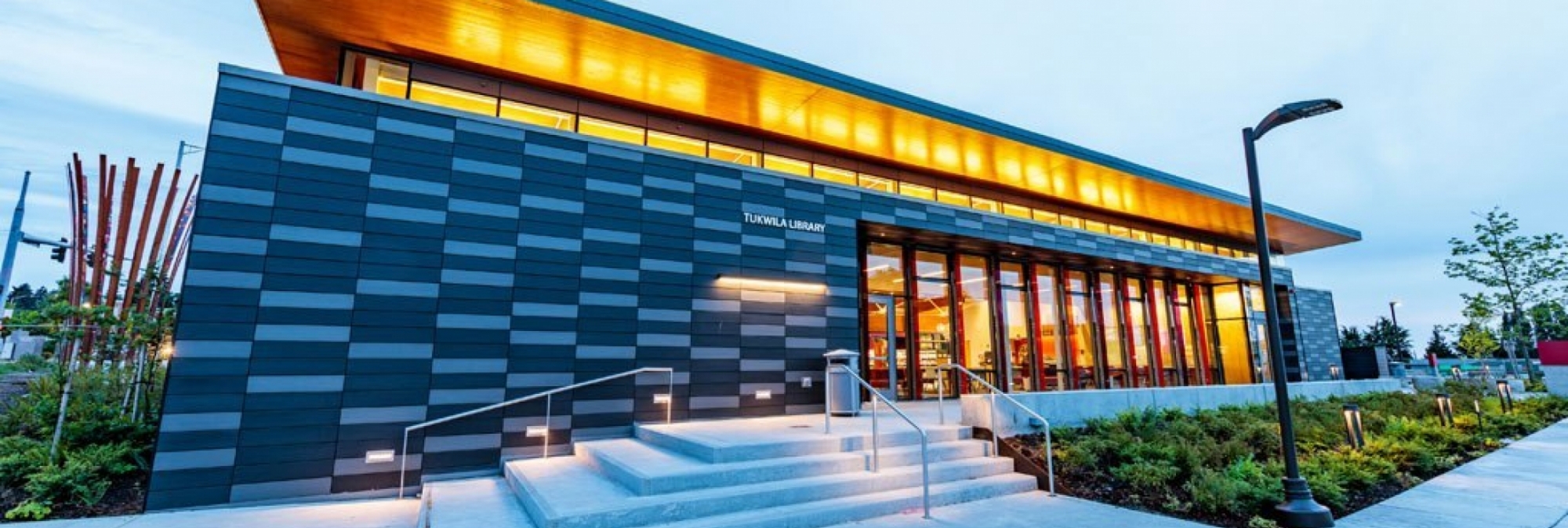

Project References

Eco Cladding Attachment Systems

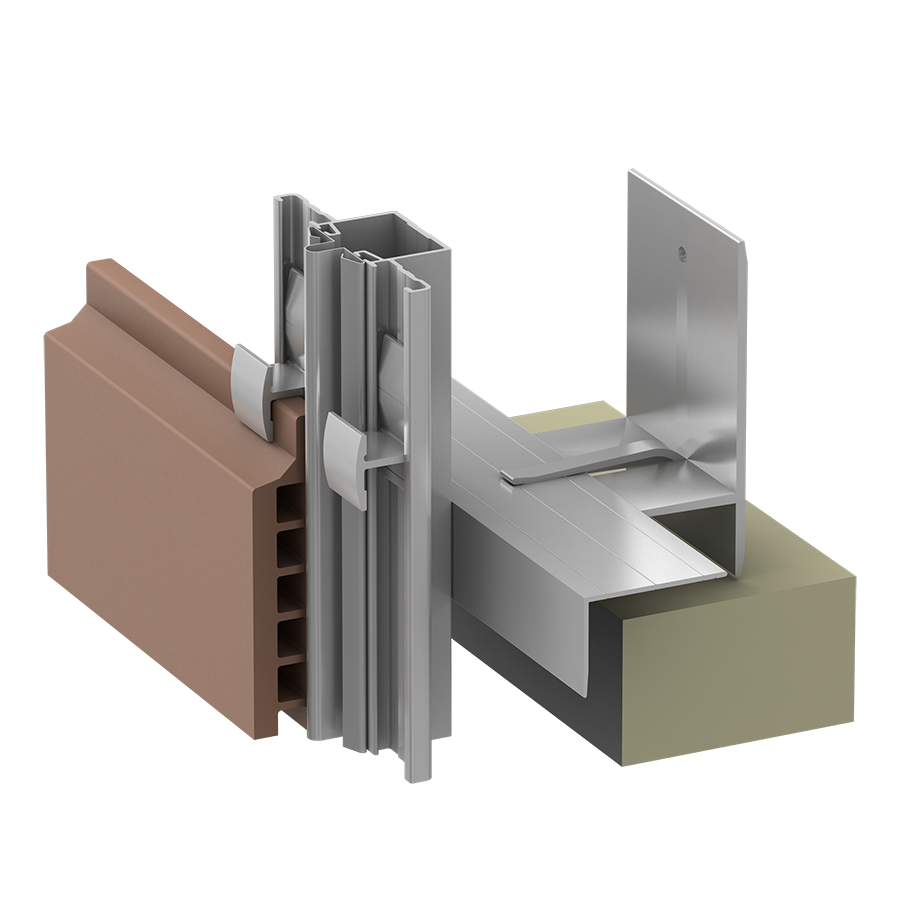

ECO Cladding Alpha Hci.22 System for Terracotta Rainscreen Panels

ALPHA HCI.22 SYSTEM

Panel Subframing system that offers concealed clip fixing for double-skin terracotta tiles. Designed specifically for fluted, double-skin terra-cotta tiles with horizontal ship-lap, to limit water penetration and provide a mechanical, clip-based solution for panel attachment.

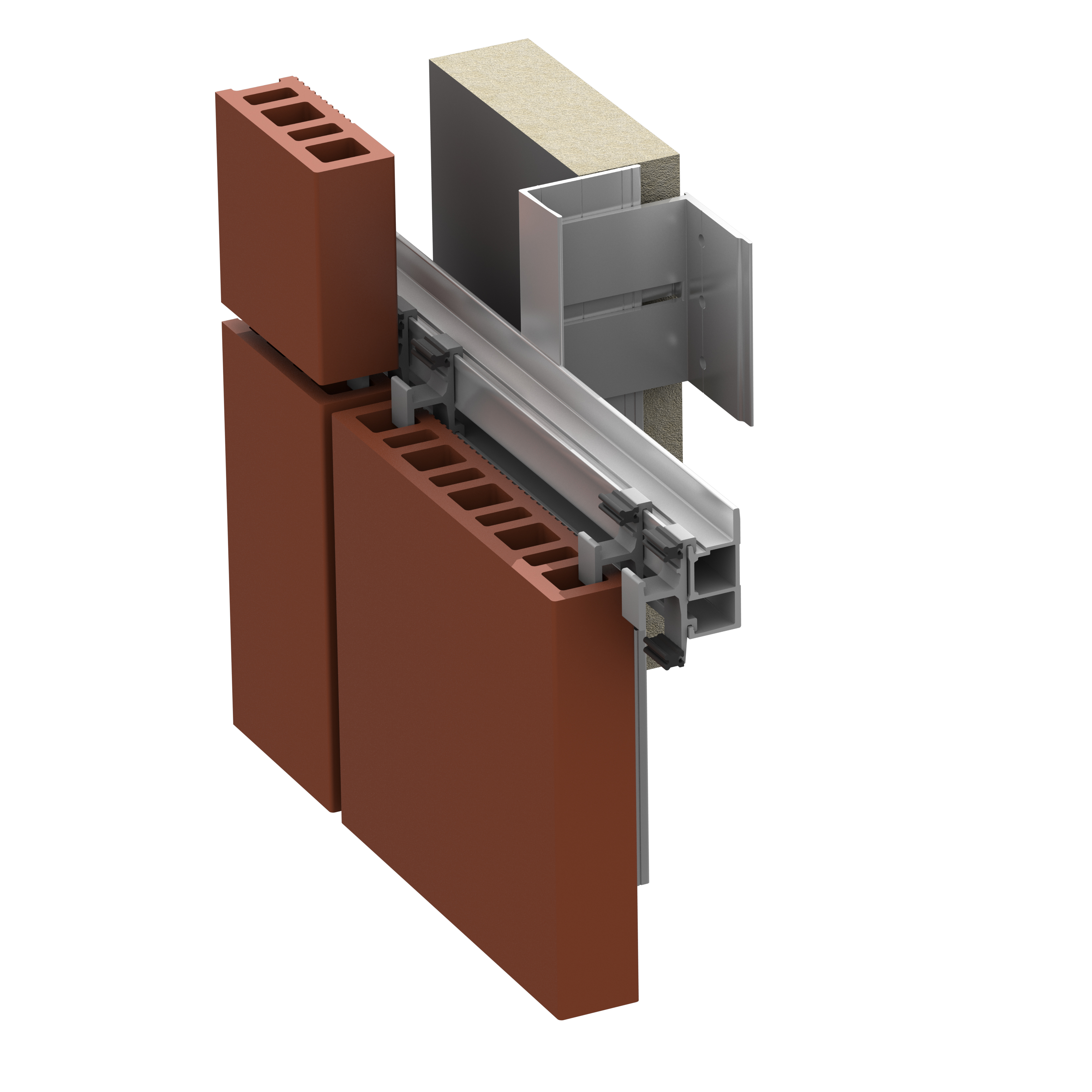

ECO Cladding Alpha Vci.29 System for Vertical Terracotta Rainscreen Tiles

ALPHA VCI.29 SYSTEM

Panel Subframing system that incorporates a versatile horizontal rail designed specifically for vertically-oriented fluted terracotta cladding tile formats. For use with either stud or concrete back-up wall conditions.
