Swisspearl AVERA Series

Swisspearl AVERA

Swisspearl AVERA
Warm & Natural… Vibrant Texture


The AVERA collection offers 9 solid-colored fiber cement panels with a vibrant texture never seen before.  Panels boast a vivid cement composite structure that is truly expressive of the raw material.  The unique look is characterized by a variation in color tonality and perspective, giving an AVERA façade a unique vibrancy that emphasizes the authenticity of the material.

By utilizing the back of the air-cured panel as the finished surface, a warmer, natural aesthetic is created.  The proprietary processes pioneered by Swisspearl include a special surface finish, sealed edges and back coating to ensure optimal behavior and durability of the panel. The transparent coating creates a vibrant surface appearance with varied texture and dynamic color tones. The standard HR (high-resistance) coating also gives the panels excellent scratch resistance and protection against heavy soiling as well as graffiti.

AVERA panels are air-cured and not autoclaved (unlike competing panel products). Advantages of this approach include:

  • The 28-day curing process allows panels and fibers to cure naturally, without excess energy or heat applied
  • High-quality raw materials provide a better finish when air-cured over time
  • Longer lasting durability with increased 'creep' capacity - reduces tensile stresses from panel expansion/contraction
  • Natural process, no additional heat applied
  • Low moisture movement within panels, reducing internal panel stress
  • Better resistance to environmental/chemical agents based on air-cured process



Swisspearl AVERA Color Overview

New! Match the AVERA finishes with coordinating color series - download our 'Color Blends' brochure below:

Cladding Corp Color Blend AVERA
Swisspearl AVERA Color Blends



Swisspearl AVERA Series

Product Sizes

Product Sizes

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

Swisspearl® Crystal AV 010

Crystal AV 010

Swisspearl® Natural Grey AV 100

Titan AV 060

Swisspearl® Titan AV 060

Natural Grey AV 100

AV 020

Swisspearl® Rubin AV 030

Rubin AV 030

Swisspearl® Azurit AV 040

Azurit AV 040

Swisspearl® Jade AV 050

Jade AV 050

Swisspearl® Topaz AV 070

Topaz AV 070

Swisspearl® Sahara AV 000

Sahara AV 000

Eco Cladding Attachment Systems

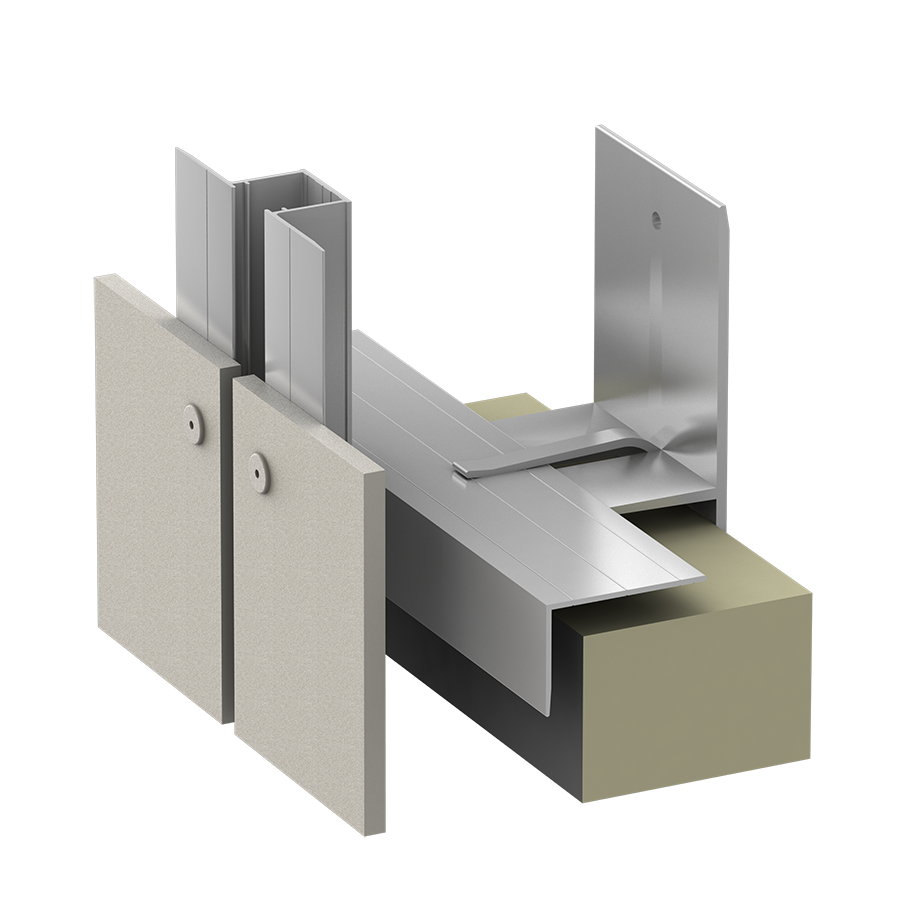

Alpha Hci.10 Rainscreen Aluminum Sub-framing System

ALPHA HCI.10 SYSTEM

Panel Sub-framing system that offers visible rivet fixing for Cem5 fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.10 Rainscreen Aluminum Sub-framing System

ALPHA VCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.40 Rainscreen Aluminum Sub-framing System

ALPHA VCI.40 SYSTEM

Panel Subframing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
