Swisspearl VINTAGO Series

Swisspearl VINTAGO

Swisspearl VINTAGO

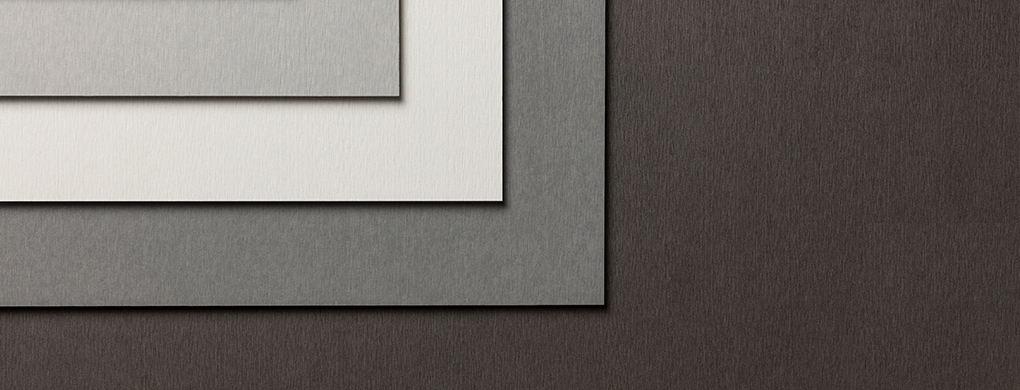

New sanded surface - vibrancy through structure.

VINTAGO is a through body-colored fiber cement panel with a sanded surface.  The sanding process uses a coarse grit which creates a natural, raw surface that highlights the original purity of Swisspearl fiber cement panels. In an interplay between light and shadow, characteristic irregularities and nuances in tone accentuate the uniqueness of each panel.

Available in 10 vibrant colors and large formats, the selection of size, cut and color offers a full range of combinations.  VINTAGO can be used on both the exterior and interior of a building providing a multi-faceted and aesthetically beautiful look.  Wherever VINTAGO is used, the color durability of the material enables the stability of the appearance for a long time.  The HR (High Resistance) coating that Swisspearl applies to VINTAGO provides outstanding weather resistance and excellent protection against discoloration or staining and gives a building's facade a consistent, high-quality look that lasts.

Download the 2020 Swisspearl VINTAGO Color Overview.


Swisspearl VINTAGO Series

Product Sizes

Product Sizes

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

VINTAGO VI 001

VI 001

VINTAGO VI 071

VI 071

VINTAGO VI 031

VI 031

VINTAGO VI 041

VI 041

VINTAGO VI 051

VI 051

VINTAGO VI 091

VI 091

VINTAGO VI 011

VI 011

VINTAGO VI 061

VI 061

VINTAGO VI 100

VI 100

VINTAGO VI 021

VI 021

Eco Cladding Attachment Systems

ALPHA HCI.10 SYSTEM

Panel Sub-framing system that offers visible rivet fixing for fiber cement, HPL or fiber concrete panels. Rivet attachment guarantees high pull-out values and ease of installation.

Download CAD Details (dwg)
Download System Details (pdf)
Learn more on ECOCladding.com
Alpha Vci.10 Rainscreen Aluminum Sub-framing System

ALPHA VCI.10 SYSTEM

Panel Sub-framing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Download CAD Details (dwg)
Download System Details (pdf)
Learn More at ECOCladding.com
Alpha Vci.40 Rainscreen Aluminum Sub-framing System

ALPHA VCI.40 SYSTEM

Panel Sub-framing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.

Download CAD Details (dwg)
Download System Details (pdf)
Learn More at ECOCladding.com
