Swisspearl PLANEA Series

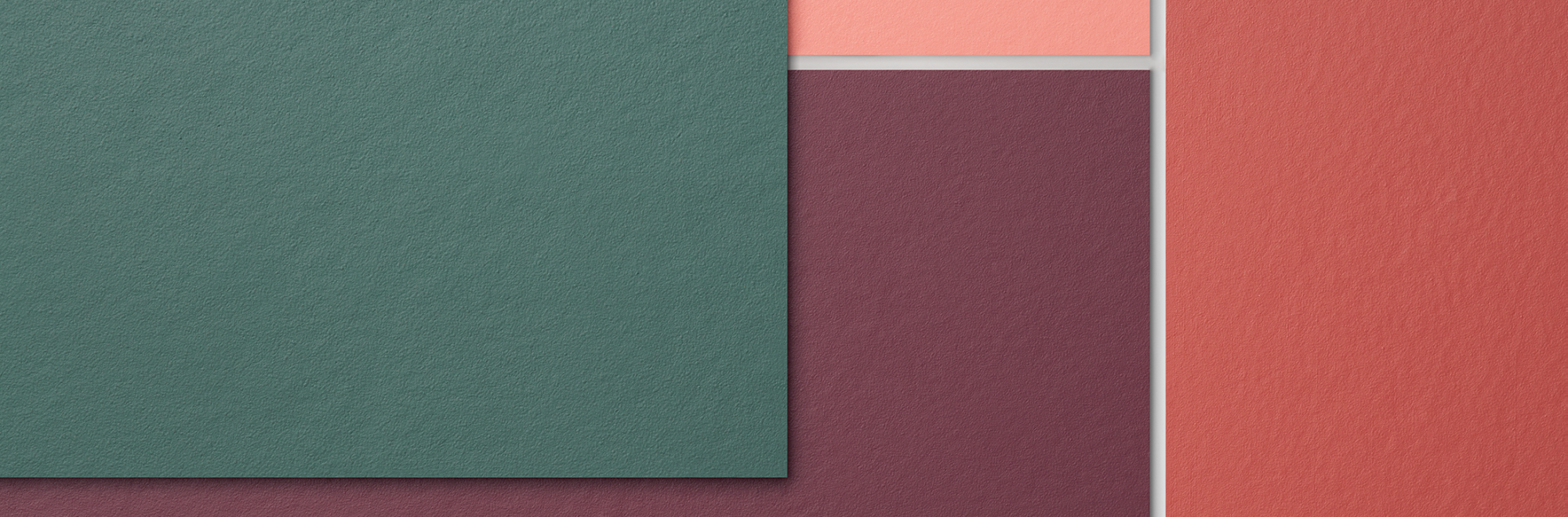

Swisspearl PLANEA

Fresh and colorful... vibrance and creativity!

Swisspearl PLANEA is a grey-based fiber cement panel with an opaque coating. The matt, smooth finish emphasizes the clear, bright, and bold colors for an overall intense appearance. In addition, the opaque acrylic surface coating also protects the panels, and thus y our building, from extreme weather conditions. PLANEA panels offer an intense burst of color, yet still offer a natural, lasting surface for the exterior of the building envelope.

PLANEA panels are air-cured and not autoclaved (unlike competing panel products). Advantages of this approach include:

  • The 28-day curing process allows panels and fibers to cure naturally, without excess energy or heat applied
  • High-quality raw materials provide a better finish when air-cured over time
  • Longer lasting durability with increased 'creep' capacity - reduces tensile stresses from panel expansion/contraction
  • Natural process, no additional heat applied
  • Low moisture movement within panels, reducing internal panel stress
  • Better resistance to environmental/chemical agents based on air-cured process

PLANEA is composed of all-natural raw materials and serves as an eco-friendly product that meets the demands of sustainability inherent to modern rainscreen cladding design.

Swisspearl PLANEA Color Overview

Swisspearl Fiber Cement Spec

Swisspearl PLANEA Series

Product Sizes

Product Sizes

Cladding Corp Largo Size 5/16“ Thick

Largo 8mm

120 1/16“ × 49 3/16“       5/16“

98 13/16“ × 49 3/16“      5/16“

Cladding Corp Largo Panel Size 1/2“ Thick

Largo 12mm

120 1/16“ × 49 3/16“      1/2“

98 13/16“ × 49 3/16“      1/2“

Cladding Corp Largo Panel Size 120 1/16"× 36 5/8" and 98 13/16" × 36 5/8"  5/16"

Largo 8mmT

120 1/16"× 36 5/8"     5/16"

98 13/16" × 36 5/8"     5/16"

Cladding Corp Linearis 6 Thumbnail

Linearis 6

5 5/8” x 9’ 11 11/16”     5/16”

5 5/8” x 7’ 11 11/16”     5/16”

Cladding Corp Linearis 12 Thumbnail

Linearis 12

11 5/8” x 9’ 11 11/16”     5/16"

11 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 16 Thumbnail

Linearis 16

15 5/8” x 9’ 11 11/16”     5/16"

15 5/8” x 7’ 11 11/16”     5/16"

Cladding Corp Linearis 24 Thumbnail

Linearis 24

23 5/8” x 9’ 11 11/16”     5/16"

23 5/8” x 7’ 11 11/16”     5/16"

Color Palette

Igloo 932

Igloo 932

Seashell 933

Seashell 933

Sunrise 831

Sunrise 831

Sunset 832

Sunset 832

Cactus 531

Cactus 531

Jungle 532

Jungle 532

Coral 331

Coral 331

Dragon 332

Dragon 332

Crimson 333

Crimson 333

Ruby 334

Ruby 334

Snowflake 930

Snowflake 930

Skylight 131

Skylight 131

Midnight 231

Midnight 231

Eco Cladding Attachment Systems

ALPHA HCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement, HPL or fiber concrete panels. Rivet attachment guarantees high pull-out values and ease of installation.

Alpha Vci.10 Rainscreen Aluminum Sub-framing System

ALPHA VCI.10 SYSTEM

Panel Subframing system that offers visible rivet fixing for fiber cement panels. Rivet attachment guarantees high pull-out values and ease of installation. Engineered to address deadload, windload, seismic concerns, thermal requirements and material deflection for either steel stud or concrete back-up conditions.

Alpha Vci.40 Rainscreen Aluminum Sub-framing System

ALPHA VCI.40 SYSTEM

Panel Subframing system that offers fixing using concealed, undercut anchors for fiber cement panels. The back of each panel is pre-drilled using undercut drill bit to receive the hanger clip and expanding bolt anchor.
