Swisspearl Clinar 6 + Clinar 4

Economical, esthetic and durable

Clinar 6

Six standard formats can be installed with continuous or staggered vertical seams to create a wide range of design options. For example, at total of 28 different designs are possible with Clinar 6.  Creativity can be unlimited. Installation and design details for durable Clinar formats are based on trusted and efficient construction techniques that can be mounted by just a single worker.

Clinar 4

Clinar fiber cement panels are produced industrially as ready-to-install. Different formats and patterns, as well as the attractive range of colors, allow for a customized design. Measuring only 4 mm thick, the panels impart an elegant lightness to a façade with a staggered arrangement.

Download the 2020 Swisspearl CLINAR 6 + CLINAR 4 Format Overview.

SIZES

Panel size: Swisspearl Clinar 6
Thickness:  15/64” (6mm)

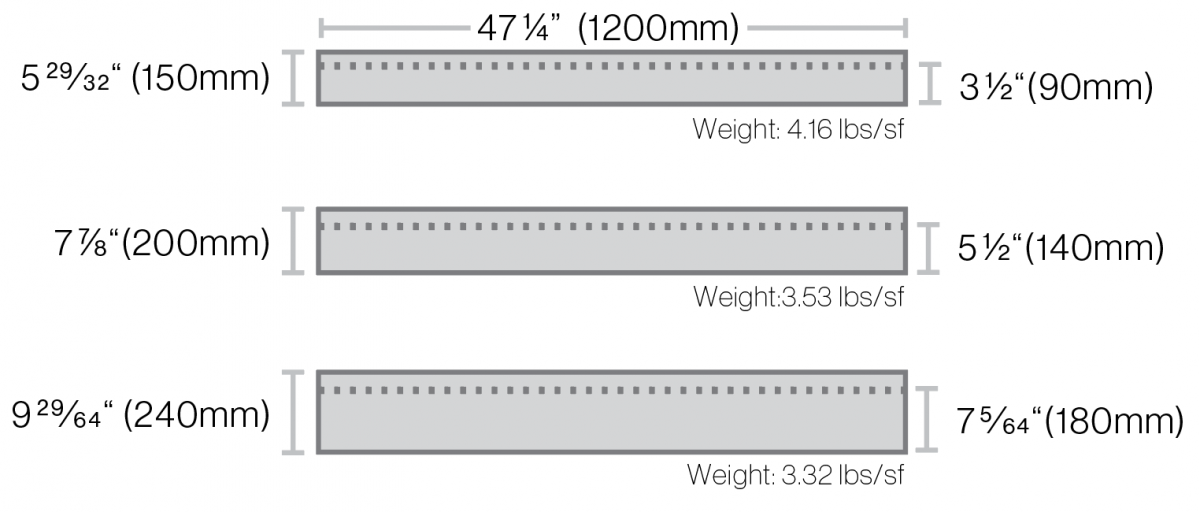

Cladding Swisspearl Clinar 6 Size Chart
Patterns: 4 base patterns = total 28 layout options
Lap: Single Lapped

Panel size: Swisspearl Clinar 4
Thickness:  1/8” (4mm)

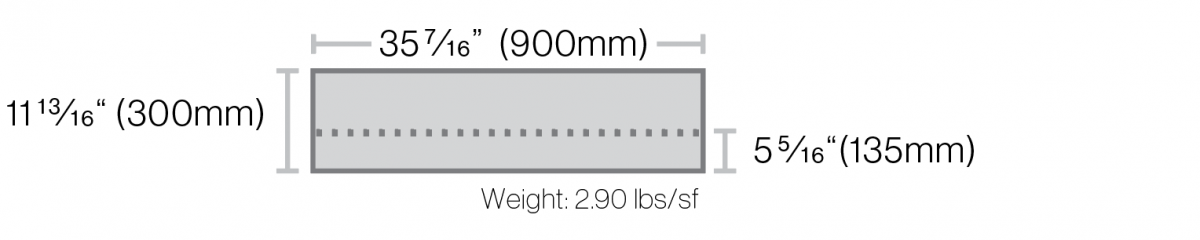

Cladding Swisspearl Clinar 4 Size Graphic
Patterns:  1 base pattern = total 2 layout options
Lap: Double Lapped

Download Swisspearl Clinar 6 Installation Demo

Available Color Series

Select Series to see Available Colors:

Available Colors:
Swisspearl Nobilis Amber 721
Amber N 721
 Swisspearl Nobilis Amber N 723
Amber N 723
Swisspearl Nobilis Azurite 421
Azurite N 421
 Swisspearl Nobilis Azurite 422
Azurite N 422
 Swisspearl Nobilis Crystal 122
Crystal N 122
Swisspearl Nobilis Crystal 123
Crystal N 123
Swisspearl Nobilis Crystal 124
Crystal N 124
Swisspearl Nobilis Crystal 125
Crystal N 125
Swisspearl Nobilis Granite 622
Granite N 622
Swisspearl Nobilis Granite 624
Granite N 624
Swisspearl Nobilis Jade 521
Jade N 521
Swisspearl Nobilis Jade 522
Jade N 522
